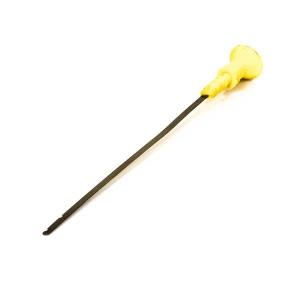

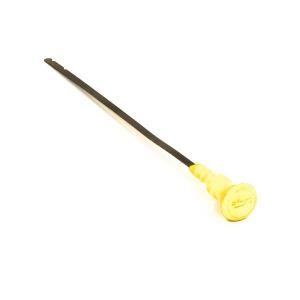

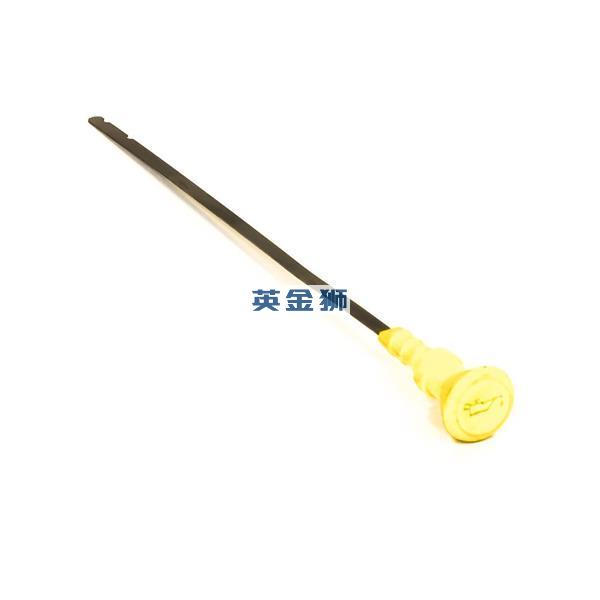

Enables checking of the oil level within the engine using the dipstick 3178C077, includes a seal to prevent the oil becoming contaminated. Depending on the design of the engine, application engine models and sump volume require different design of dipstick, so it is important to have the right length of dipstick and position. Colored handle for easy easy to read level indicator and easy recognition. Remember to let the oil settle with the engine off, on level ground for 5 to 10 minutes before checking the oil level. Under filling is as bad as overfilling, always maintain the oil level according to the Perkins Operation and Maintenance Manual.
End to bottom notch (in) 0.2
End to bottom notch (mm) 5
Length to top notch (in) 7
Length to top notch (mm) 178
Oil level length - between notches (in) 0.6
Oil level length - between notches (mm) 15
...2020-04-12 03:53:59
在线客服
装挖机Backhoe
_1.Jpeg)
淘宝店铺
点击咨询
使用量油尺3178C077能够检查发动机内的油位，包括油封以防止机油被污染。根据发动机的设计，应用发动机的型号和油底壳体积需要对量油尺进行不同的设计，因此具有正确的量油尺长度和位置很重要。彩色手柄易于读取液位指示器，易于识别。切记在关闭发动机的情况下让油在水平地面上静置5至10分钟，然后再检查油位。加注不足与加注同样严重，请始终根据《珀金斯操作和维护手册》保持油位。
1000系列
1004-4、1004-40、1004-40T，1004-40TA，1004-42、1004-4T，1006-6、1006-60、1006-60T，1006-60TW，1006-6T
1100系列
1104A-44、1104A-44T，1104A-44TA，1104C-44、1104C-44T，1104C-44TA，1104C-E44、1104C-E44T，1104C-E44TA，1104D-44、1104D-44T，1104D-44TA，1106C- E60TA
4.236系列
G4.236
端到端凹口（in）0.2
端到端凹口（mm）5
顶尖长度（英寸）7
到顶端的长度（毫米）178
油位长度-槽口之间（英寸）0.6
油位长度-槽口之间（mm）15
...2020-04-12 03:54:08
Enables checking of the oil level within the engine using the dipstick 3178C077, includes a seal to prevent the oil becoming contaminated. Depending on the design of the engine, application engine models and sump volume require different design of dipstick, so it is important to have the right length of dipstick and position. Colored handle for easy easy to read level indicator and easy recognition. Remember to let the oil settle with the engine off, on level ground for 5 to 10 minutes before checking the oil level. Under filling is as bad as overfilling, always maintain the oil level according to the Perkins Operation and Maintenance Manual.
1000 Series
1004-4, 1004-40, 1004-40T, 1004-40TA, 1004-42, 1004-4T, 1006-6, 1006-60, 1006-60T, 1006-60TW, 1006-6T
1100 Series
1104A-44, 1104A-44T, 1104A-44TA, 1104C-44, 1104C-44T, 1104C-44TA, 1104C-E44, 1104C-E44T, 1104C-E44TA, 1104D-44, 1104D-44T, 1104D-44TA, 1106C-E60TA
4.236 Series
G4.236
End to bottom notch (in) 0.2
End to bottom notch (mm) 5
Length to top notch (in) 7
Length to top notch (mm) 178
Oil level length - between notches (in) 0.6
Oil level length - between notches (mm) 15
